Specification

Specification

If you need the complete Specification, go to http://127.0.0.1:8000/openapi/openapi.json

info

star-openapi provide Swagger UI, Redoc, RapiDoc, RapiPdf, Scalar and Elements interactive documentation. Before that, you should know something about the OpenAPI Specification.

You can use a dictionary to provide the info parameters: title, version... , more information sees the OpenAPI Specification Info Object.

from star_openapi import OpenAPI
from star_openapi.router import APIRouter

info = {"title": "book API", "version": "1.0.0"}
app = OpenAPI(info=info)
api = APIRouter(url_prefix='/api')

if __name__ == '__main__':
    import uvicorn
    uvicorn.run(app)

run it, and go to http://127.0.0.1:8000/openapi, you will see the documentation.

security_schemes

There are some examples for Security Scheme Object, more features see the OpenAPI Specification Security Scheme Object.

# Basic Authentication Sample
basic = {
  "type": "http",
  "scheme": "basic"
}
# JWT Bearer Sample
jwt = {
  "type": "http",
  "scheme": "bearer",
  "bearerFormat": "JWT"
}
# API Key Sample
api_key = {
  "type": "apiKey",
  "name": "api_key",
  "in": "header"
}
# Implicit OAuth2 Sample
oauth2 = {
  "type": "oauth2",
  "flows": {
    "implicit": {
      "authorizationUrl": "https://example.com/api/oauth/dialog",
      "scopes": {
        "write:pets": "modify pets in your account",
        "read:pets": "read your pets"
      }
    }
  }
}
security_schemes = {"jwt": jwt, "api_key": api_key, "oauth2": oauth2, "basic": basic}

First, you need to define the security_schemes and security variable:

jwt = {
    "type": "http",
    "scheme": "bearer",
    "bearerFormat": "JWT"
}
security_schemes = {"jwt": jwt}

security = [{"jwt": []}]

app = OpenAPI(info=info, security_schemes=security_schemes)

Second, add pass the security to your api, like this:

@app.get('/book/{bid}', tags=[book_tag], security=security)
async def get_book(path: Path, query: BookBody):
    ...

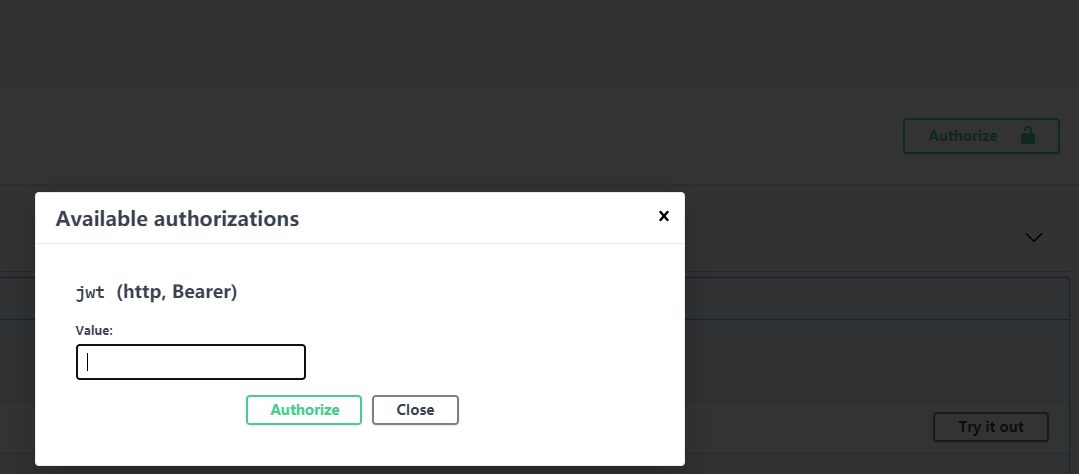

result:

doc_ui

You can pass doc_ui=False to disable the OpenAPI spec when init OpenAPI.

app = OpenAPI(info=info, doc_ui=False)

You can also use doc_ui in endpoint or when initializing APIRouter.

api = APIRouter(
    url_prefix='/book',
    doc_ui=False
)

# or

@api.get('/', doc_ui=False)
async def get_book():
    ...

servers

An array of Server Objects, which provide connectivity information to a target server. If the server's property is not provided, or is an empty array, the default value would be a Server Object with an url value of /.

from star_openapi import OpenAPI, Server

servers = [
    Server(url='http://127.0.0.1:8000'),
    Server(url='https://127.0.0.1:8000'),
]
app = OpenAPI(info=info, servers=servers)

external_docs

Allows referencing an external resource for extended documentation.

More information to see External Documentation Object.

from star_openapi import OpenAPI, ExternalDocumentation

external_docs=ExternalDocumentation(
    url="https://www.openapis.org/",
    description="Something great got better, get excited!"
)
app = OpenAPI(info=info, external_docs=external_docs)

openapi_extensions

While the OpenAPI Specification tries to accommodate most use cases, additional data can be added to extend the specification at certain points. See Specification Extensions.

It can also be available in every api, goto Operation.

import uvicorn
from star_openapi import OpenAPI

app = OpenAPI(info={"title": "API", "version": "1.0.0"}, openapi_extensions={
    "x-google-endpoints": [
        {
            "name": "my-cool-api.endpoints.my-project-id.cloud.goog",
            "allowCors": True
        }
    ]
})

@app.get("/")
async def hello():
    return "ok"


if __name__ == "__main__":
    uvicorn.run(app)

validation error

You can override validation error response use validation_error_status, validation_error_model and validation_error_callback.

• validation_error_status: HTTP Status of the response given when a validation error is detected by pydantic. Defaults to 422.
• validation_error_model: Validation error response model for OpenAPI Specification.
• validation_error_callback: Validation error response callback, the return format corresponds to the validation_error_model. Receive ValidationError and return Starlette Response.

from starlette.responses import Response
from pydantic import BaseModel, ValidationError

class ValidationErrorModel(BaseModel):
    code: str
    message: str


def validation_error_callback(e: ValidationError) -> Response:
    validation_error_object = ValidationErrorModel(code="400", message=e.json())
    return Response(
        content=validation_error_object.model_dump_json(),
        media_type="application/json",
        status_code=400
    )


app = OpenAPI(
    info={"title": "API", "version": "1.0.0"},
    validation_error_status=400,
    validation_error_model=ValidationErrorModel,
    validation_error_callback=validation_error_callback
)
